Name: 5ton Single Beam Warehouse Gantry Crane With Wirerope Electric Hoist
Brand: SANTO
Price: 4999 USD

Brand Name : SANTO

Model Number : MH, BMH, MHL, MDG

Certification : ISO, CE

Place of Origin : CHINA

MOQ : 1set

Price : USD4999-49999/set

Payment Terms : L/C, T/T

Supply Ability : 5000set/year

Delivery Time : 15-30 working days

Packaging Details : Electrical and other parts packed by high quality plywood crate, steel beams packed by plastic films or plastic woven cloth

Feature : Gantry Crane

Condition : New

Rated loading capacity : 5t-10t-16t-20t

Span : 12-30m

Lifting height : 3~20M

Lifting mechanism : Hoist Trolley

Power source : 220V-380V-415V-440V 50/60Hz

Control method : Cabin control/wire rope remote control

Place of origin : China

Working duty : A3-A5

Certificate : SIO, CE

Color : Red ,Yellow or on request

Contact Now

5ton Single Beam Warehouse Gantry Crane With Wirerope Electric Hoist


Henan Santo Crane Co., Ltd. is well-known for professional manufacturer and service-supplier of new high-tech gantry crane, overhead crane, electric hoist, portal crane, steel workshop. Our products are widely used in energy, metallurgy, transportation, heavy machinery, Nuclear power, hydropower, aviation and military projects a series of environment-friendly machinery. All of the products can be customized as your demand.

Brief Interduction
Gantry Cranes are also known as Portal cranes or Goliath cranes and operate on floor mounted rails rather than a supporting runway system as used by bridge cranes. Unlike overhead cranes, gantry cranes have legs and move on rails which are usually mounted on floor level. Semi Gantry cranes feature a floor mounted rail and a structurally mounted rail. Manufacturing in accordance with the different customer´s requirements, including single girder, double girder, single leg, double leg, semi gantry, and cantilever styles. SANTO have single girder solutions for Gantry Cranes from 1 ton SWL up to 32 ton and double girder solutions up to 550 ton SWL.

Technical Specification:

Capacity			T	3	5	10	16	20
Span			m	12,16,20,24,30,35,40,50
Operational method				Pendant Line With Press Button /Cabin/ Remote
Speed	Lifting		m/min	8 ,8/0.8	8,8/0.8	7,7/0.7	3.5	3.5
	Cross travelling			20	20	20	20	20
	Long travelling	Ground		20	20	20	20	20
	Long travelling	Cabin		20, 30,45	20, 30,40	30,40	30,40	30,40
Motor	Lifting		Type /kw	ZD41-4/4.5 ZDS1-4/0.4/4.5	ZD141-4/7.5 ZDS10.8/4.5	ZD151-4/13 ZDS11.5/4.5	ZD151-4/13	ZD152-4/18
	Cross travelling			ZDY12-4/0.4	ZDY121-4/0.8	ZDY21-4/0.8×2	ZDY121-4/0.8×2	YZD-4/0.8×4
	Long travelling	Ground		ZDY21-4/0.8×2 ZDY21-4/1.5×2	YZY22-4/1.5×2 YZR132M2-6/3.7×2	YZR22-4/1.5×2	YZR160M1-6/6.3×2 YZR160M2-6/8.5×2	YZR160M1-6/6.3×2 YZR160M2-6/8.5×2
	Long travelling	Cabin		ZDR100-4/1.5×2 ZDR112-4/2.1×2	YZR112L1-4/2.1×2 YZR160M1-6/2.1×2	YZR112L1-4/2.1×2 YZR160M2	YZR160M2-6/8.5×2 YZR160L2-6/11×2	YZR160M2-6/8.5×2 YZR160L2-6/11×2
Electric hoist			Model	CD1/MD1	CD1/MD1	CD1/MD1	CD1	HC
Lifting height			m	6,9
Working duty				A3
Power supply				380V 60HZ 3phase AC (According to your demand )

Safety Features
Limit switch: prevent pressure. Overload protect device: once overweight, stop working immediately. Buffer: avoid collision. Brake: a restraint used to slow or stop a vehicle. Emergency stop switch: has the protection of any emergency.

Material
Motor: He li Brand made by Nan jing special motor factory, or Jiamusi Brand. 80% of the parts product by ourselves, so we can control the quality strictly. Meanwhile, we can also offer sway control to prevent swing.

Advantage
Good quality with competitive price Reasonable structure, favorable performance Control the load easily and position the load exactly Smooth starting and stopping Superior safety and reliability Low noise, commodious cabin and good view Low dead weight low your cost Easy maintenance for parts

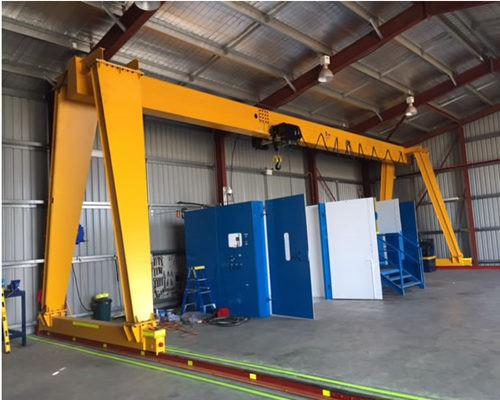

5ton Single Beam Warehouse Gantry Crane With Wirerope Electric Hoist Images
